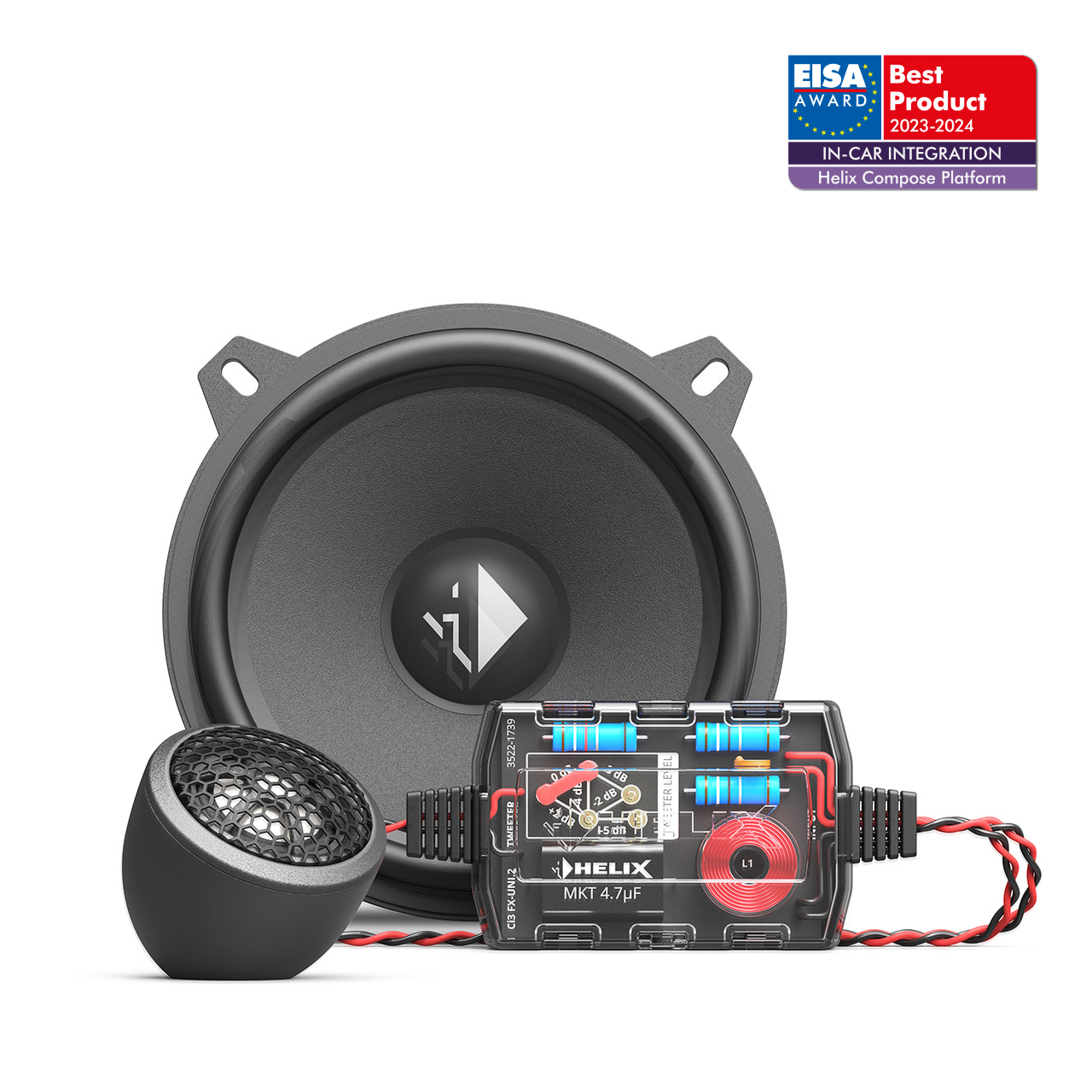

Power handling RMS / Max. P 70 / 105 Watts Frequency response 80 Hz – 22,000 Hz Impedance Z 3 Ω Sensitivity SPL 90 dB @ 2.83V / 1m 86 dB @ 1W / 1m Outer diameter ø Tweeter: 32.0 mm / 1.26” Midbass: 130 mm / 5.12” Installation diameter ø Tweeter: 32.0 mm / 1.26” Midbass: 118.0 mm / 4.65” Installation depth Tweeter: 9.8 mm / 0.39” Midbass: 51.4 mm / 2.02” Dimensions crossover 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98” Midbass Impedance Z 3 Ω DC resistance Re 3.0 Ω Resonance frequency Fs 88 Hz Mechanical Q factor Qms 4.10 Electrical Q factor Qes 1.12 Total Q factor Qts 0.88 Compliance Cms 320 μm/N Equivalent air volume Vas 4.2 L Force factor B*l 3.9 Tm Cone area Sd 97 cm2 Moving mass Mms 10.1 g Mechanical resistance Rms 1.30 kg/s Voice coil diameter ø 25 mm Voice coil winding height 8.9 mm Max. linear excursion Xmax +/- 2.5 mm Tweeter Impedance Z 4 Ω Resonance frequency Fs 2000 Hz Voice coil diameter ø 20 mm Features Tweeter Ultra compact, silk dome, neodymium magnet and FlexMount20 Midbass Injected polypropylene cone Crossover Tweeter: 12 dB highpass, protection and level adjustment Compatibility FlexMount20 Scope of delivery 2 x Tweeter CB T20FM-S 2 x Midbass CB W130-S3 2 x Crossover CB FX130.2 2 x Tweeter mounting accessories 1 x Mounting material
