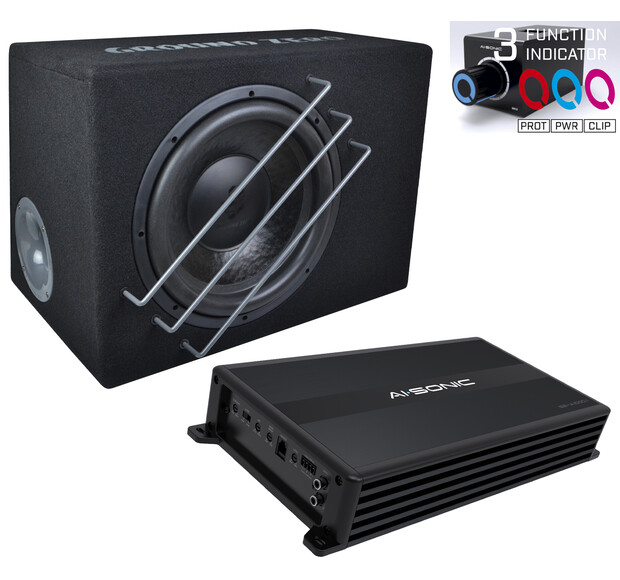

RMS POWER (1ohm) 12v THD 0.5% 1000W RMS POWER (2ohm) 12v THD 0.5% 650W RMS POWER (4ohm) 12v THD 0.5% 380W T.H.D 0.5% BANDWIDTH: 10-200 Hz S/N RATIO(A-WEIGHTED): 90dB INPUT SENSITIVITY: 0.35-6V LOW PASS: 50-200 Hz SUBSONIC: 10-50Hz CROSSOVER SLOPE: 12dB /24dB/oct BASS BOOST: 0-12dB(@45 Hz) POWER FUSE: 40A•3 Cable fitting size: +12V = 20mm2 GND = 20mm2 REM = 6mm2 SPEAKER = 6mm2 Current Draw (Max): 115A DIMENSIONS W: 183mm / (7.2IN) H: 60mm / (2.4 IN) L: 344mm /(13.5 IN) 12″ vented SQ loaded enclosure Subwoofer GZUW 12SQ-D2 Resonance-free aluminum cast basket 2″ copper voice coil High quality vented enclosure Airflow optimized ventilation tube Solid enclosure from MDF GZ Push terminal Power handling 600 Watts RMS Impedance 2×2 Ohm Xmax 20mm (p2p) Net volume 42 Liter Tuning frequenzy 31 Hz Roll-off frequenzy 326Hz Ventilation port 1x7cm Port lenght 24cm Dimensions (w x h x d) 520 x 380 x 358mm Backwall angle 76°.
