Omadused:
General Specifications
Continuous Power Handling (RMS) 60 W
Recommended Amplifier Power (RMS) 15 – 100 W / Ch.
System Efficiency 89.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 63 Hz – 22 KHz ± 3 dB

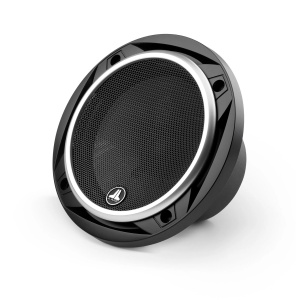

Woofer Physical Specifications
Frame Outer Diameter* (A) 5.20 in / 132 mm
Grille Tray Outer Diameter (B) 6.01 in / 153 mm
Motor Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion** (E) 0.72 in / 18 mm
Mounting Hole Diameter (F) 4.56 in / 116 mm
Mounting Depth (G) 2.50 in / 64 mm
